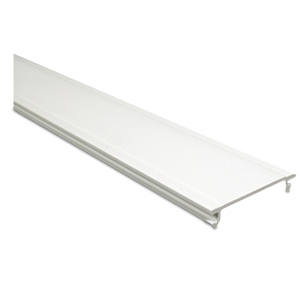

Legrand - Wiremold 5400 Series Nonmetallic Raceway™ Twin Snap Cover |
(Model # 5400TC)  'Single' Quantity Only Available if 'In Stock' Note: Picture may not represent the actual product. We are continuously working on improving our website and reserve the right to change specifications, availability, and pricing without prior notice. 5400 Series Nonmetallic Raceway™ Twin Snap Cover. Raceway is available with Full Width Cover System and Factory Prewired if desired. Wiremold® 5400 Series Raceway™ provides wire and cable management for data, voice, video, and power applications.
Minimum Ordering Specifics:'Single' Ordering Quantity is only Available if 'In Stock'. Please call for updated Inventory Status. 'Pack of 12' can always be Ordered.
Raceway Twin Snap Cover Features:
- 5400TBC Base is to be used with Model 5400C - Full Width Cover or Model 5400TC - Twin Snap Cover - Order Cover for each Compartment
- Packaged in 8' Sections 12 pieces (96') per carton
- Large cable capacity in a low profile design
- Twin Snap cover - Complete segregation of access to
power and low voltage services for installation flexibility
- 2" Bend Radius Compliant fittings that snap on to overlap raceway base and cover for an aesthetic
installation
- Fittings are UL verified for a 2" Bend Radius and exceed the recommendations of TIA/EIA 569-A
- The 5400TB Base is available prewired and can be manufactured to specified job site lengths - Jobs can be packaged by area, floor, or building and shipped per job site requirements
- Electrical device identification for prewired jobs eliminates guesswork and circuit tracing to speed additions
and renovations
- Device mounting in-line, offset, or both, offers flexibility and up to three separate services at the same location
- Made of PVC material which is lightweight and easy to cut
- Meets UL flammability requirements - UL Listed for up to 600V
- Datacom connectivity options - Accepts industry standard
and proprietary devices from a wide range of manufacturers
to provide a seamless and aesthetically pleasing interface for voice, data, audio, and video applications at the point of use
- Available Colors: Ivory and White Finishes - Custom Colors available direct from Factory - Raceways Paintable using Latex Paint
for faster and easier raceway installation
- Sold as a Single Cover and in a Package of 12 Covers
- Dimensions: 8' L x 2 9/16" H Each
Display all product SKU information
| SKU | Color |
Length |
Quantity |
|---|
| 5400TC-8FT-12PK | Ivory |
8' |
Package of 12 |
| 5400TC-WH-8FT-12PK | White |
8' |
Package of 12 |
| |
|
